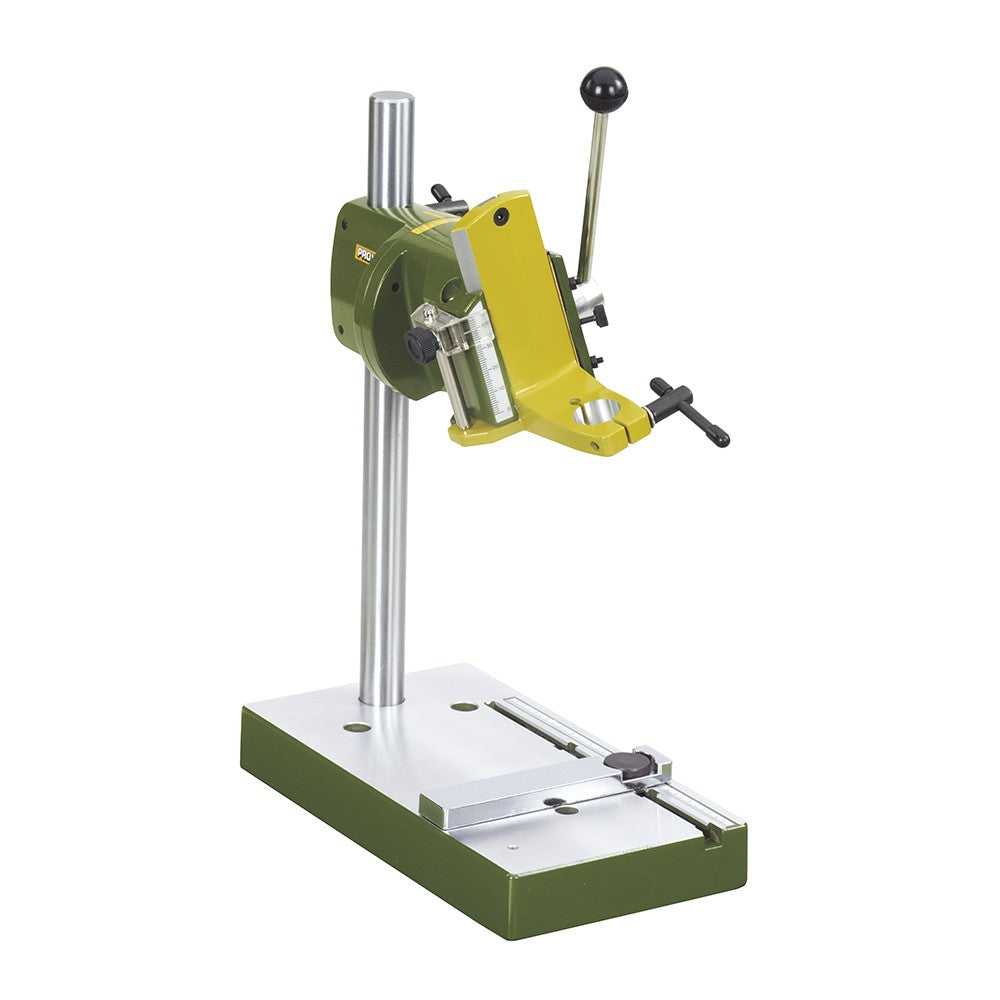

PROXXON MICROMOT drill stand MB 200
PROXXON MICROMOT drill stand MB 200
VAT registration pending. VAT invoices will be available once our registration number is issued. Delivery is calculated at checkout.
Geared rack and pinion feed with return spring allowing effortless and sensitive operation. Practical drill depth scale with adjustable limit stop (maximum travel 40mm). With standard 20mm collar for MICROMOT drilling and milling devices. With solid, hard chromium-plated steel column (280 x 20mm), throat capacity (column inside to centre of tool) 140mm.
Plane-milled table (220 x 120mm) with parallel limit stop and scale. Drilled, tapped holes for securing the MICRO compound table?KT 70?and holes to fix the drill stand itself are also provided. Weight 2.2kg.
Note:
Our designers prefer die-cast aluminium. A refined, rust-proof and statically solid material. Fittings and feeds are machined on our highly modern CNC-controlled machines (milled, line-bored, lathed, etc.). Pure precision!

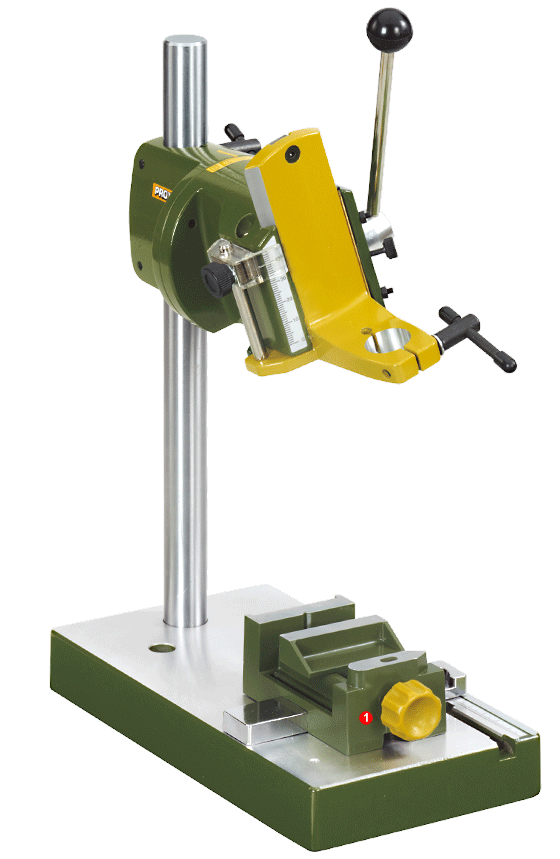

The depicted machine vice MS 4 is not included in the scope of delivery.
